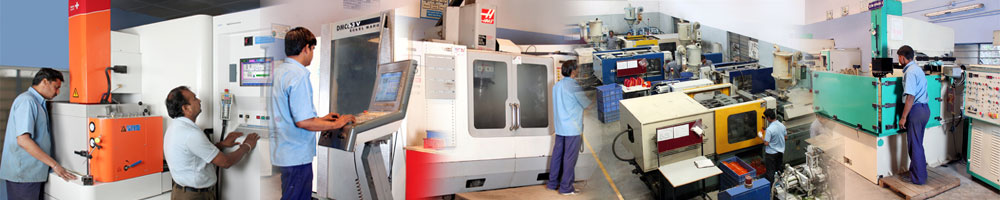

Machines
  • Makino F5 with 20,000rpm Spindle Speed.
  • DMC 63V Deckel Maho Vertical Machining Center. X=630; Y=500; Z=500, Table Size – 800 X 600
  • VF - 3 HAAS Vertical Machine Center X = 1016; Y = 508; Z = 635 - 2 nos.
  • VF - 6 HAAS Vertical Machine Center X = 1618; Y = 850; Z = 635 - 1 nos.
  • All VMC's Are Equiped With Blum Probe With From Control Software To Have Online Inspection Within 5 Microns.
  • +GF+ AgieCharmilles Roboform 23UP Die Sinking CNC EDM. Work size 630 x 400.
  • +GF+ AgieCharmilles CNC Wire EDM Machine CUT 20P.
  • EDM drilling machine: 0.3mm to 10mm holes, upto 300 mm depth.
  • ZNC Spark Erosion with Orbital Attachment, Tank Size 1000 x750.
  • Spark Erosion with Orbital Attachment Tank Size 1500 x 1200.
  • Wire Cut EDM Machine
  • Spark Erosion Machine.
  • Bed Milling Machine size - 2000 X 1000
  • Jig Boring Machine size - 1500 X 1000
  • Bed Milling Machine, HMT FN3 Heavy duty milling, HMT G17 Cylindrical Grinding, Proth surface grinder 1200 x 350, Jig boring 800 x 400, Perfect brand Surface Grinding Machine 700 X 1500 , Lathe and other conventional machines.
  • Moulding machines with clamping tonnages ranging from 15 to 400.
  • Orbital Riveting machine.

Softwares
  • ProE Wildfire 5
  • Powershape
  • VISI

Special Facilities
  • MoldeX 3D: software for mould flow analysis

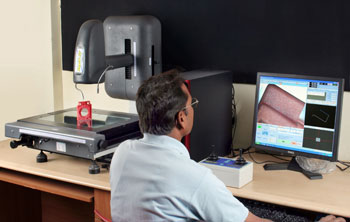

  • Rapid-I: Sophisticated 3D profile projector, Magnification 65X, accuracy 5µ.

Modex 3D
